  Probe Industries SRS Pistons - Buick V6 Dish Top -29.5cc

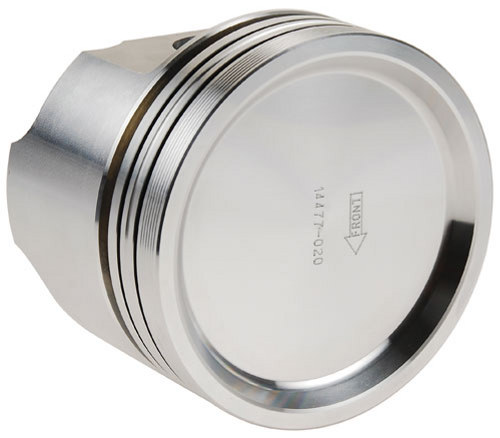

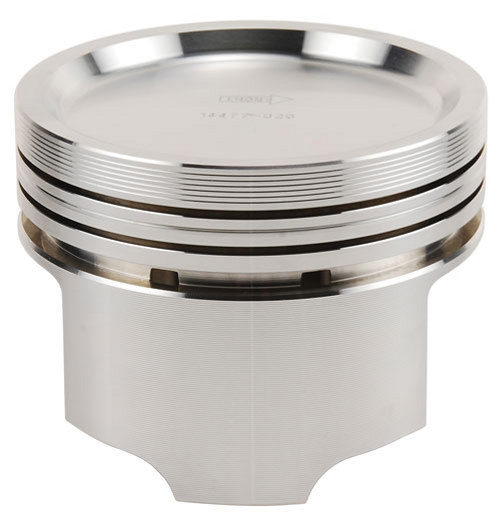

  Buick V6 -29.5cc Dish Top SRS Pistons



Alternative Views:

SPORTSMAN RACE SERIES Ð SRS

SRS Probe SRS forged pistons are designed for high performance street and most racing applications. SRS pistons are available in a wide variety of designs, tuned to achieve the highest performance possible. Any combination from ultralight 2bbl oval track to high performance street, to heavily boosted race only cars will find Probe SRS Forged Pistons to be the perfect piston.

  • 2618-t61 Forged Aluminum
  • Lightweight wrist pins
  • Lightweight piston designs
  • Full floating wrist pins
  • Tight running clearances
  • Narrow piston rings
  • Low drag skirt design
  • Large variety of compression ratios
  • Design specific valve reliefs

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name Racer Price Qty Add
14477-020 SRS Pistons - Buick V6 Dish Top -29.5cc (+.020") $389.99
14477-030 SRS Pistons - Buick V6 Dish Top -29.5cc (+.030") $389.99
14477-040 SRS Pistons - Buick V6 Dish Top -29.5cc (+.040") $389.99
Check the items you wish to purchase, then click


Technical Specs:
Item Code14477
Vendor NameProbe Industries
Product TypePistons
Product ModelSportsman Race Series - SRS
Engine FamilyBUICK - 6 Cylinder
Material2618-t61 Forged Aluminum
Base Bore (in)3.800
Stroke (in)3.400
Rod Length (in)1.850
Compression Height (in)1.820
Top TypeDish Top
Net Head Volume (cc)-29.5
Dish Depth (in)-0.280
Deck Thickness (in)0.180
Weight Without Pin (g)530
Wrist Pin Diameter (in)0.940
Wrist Pin Length (in)2.500
Pin Lock TypeDbl Spiral
Ring Set #315-0011
Top Ring Groove Size1/16 in.
Second Ring Groove Size1/16 in.
Oil Ring Groove Size3/16 in.
Top Ring Land (in)0.300
Second Ring Land (in)0.230
Bottom Ring Land (in)0.150
QuantitySold in sets of 6.




Compression Ratio:
Part NumberCylinder Head Volume
48.0cc
14477-0208.34
14477-0308.37
14477-0408.41
