  Probe Industries SRS Pistons - Chevy 377 Dome Top +5.2cc

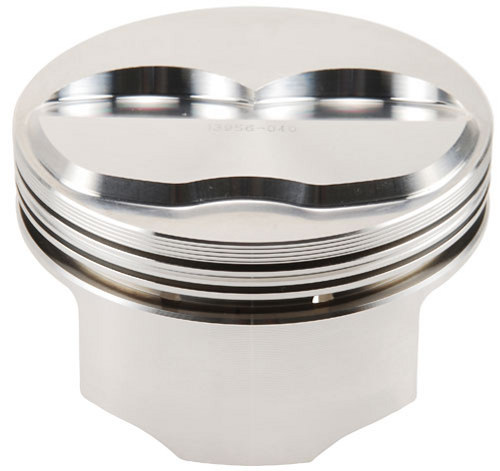

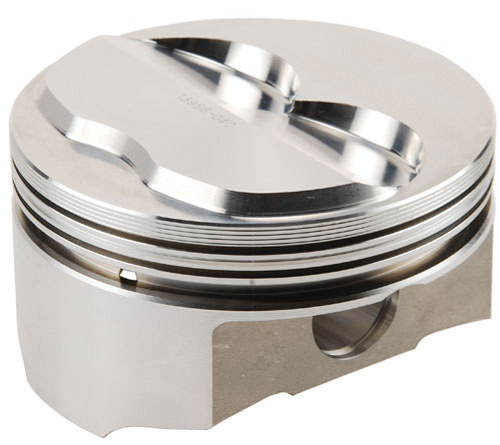

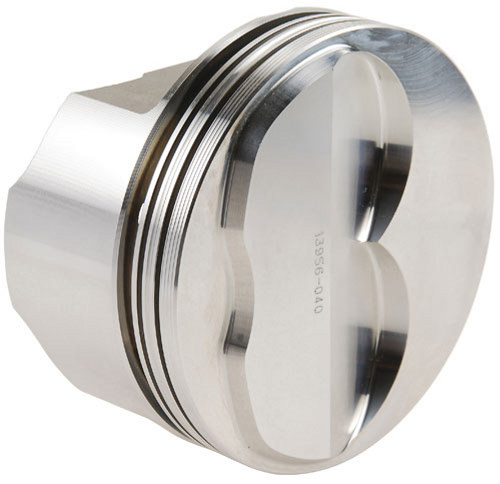

  Chevy 377 +5.2cc Dome Top SRS Pistons



Alternative Views:

SPORTSMAN RACE SERIES Ð SRS

SRS Probe SRS forged pistons are designed for high performance street and most racing applications. SRS pistons are available in a wide variety of designs, tuned to achieve the highest performance possible. Any combination from ultralight 2bbl oval track to high performance street, to heavily boosted race only cars will find Probe SRS Forged Pistons to be the perfect piston.

  • 2618-t61 Forged Aluminum
  • Lightweight wrist pins
  • Lightweight piston designs
  • Full floating wrist pins
  • Tight running clearances
  • Narrow piston rings
  • Low drag skirt design
  • Large variety of compression ratios
  • Design specific valve reliefs

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name Racer Price Qty Add
13956-030 SRS Pistons - Chevy 377 Dome Top +5.2cc (+.030") $540.99
13956-040 SRS Pistons - Chevy 377 Dome Top +5.2cc (+.040") $540.99
Check the items you wish to purchase, then click


Technical Specs:
Item Code13956
Vendor NameProbe Industries
Product TypePistons
Product ModelSportsman Race Series - SRS
Engine Displacement (cu.in.)377
Engine FamilyCHEVROLET - Small Block V8
Material2618-t61 Forged Aluminum
Base Bore (in)4.125
Stroke (in)3.480
Rod Length (in)6.000
Compression Height (in)1.260
Top TypeDome Top
Net Head Volume (cc)+5.2
Dome Height (in)0.175
Deck Thickness (in)0.200
Valve Pocket Cutters2.150 I - 2.150 E
Valve Pocket Depth (in).250 I - .250 E
Valve Pocket Max Depth.320 I - .320 E
Weight Without Pin (g)486
Wrist Pin Diameter (in)0.927
Wrist Pin Length (in)2.500
Wrist Pin Weight (g)118
Pin Lock TypeDbl Spiral
Ring Set #315-0032
Top Ring Groove Size1/16 in.
Second Ring Groove Size1/16 in.
Oil Ring Groove Size3/16 in.
Top Ring Land (in)0.200
Second Ring Land (in)0.150
Bottom Ring Land (in)0.070
QuantitySold in sets of 8.




Compression Ratio:
Part NumberCylinder Head Volume
58.0cc64.0cc68.0cc76.0cc
13956-03013.0912.0511.4510.43
13956-04013.1312.0911.4910.47
