  Probe Industries SRS Pistons - Chevy 396 Dome Top +30.0cc

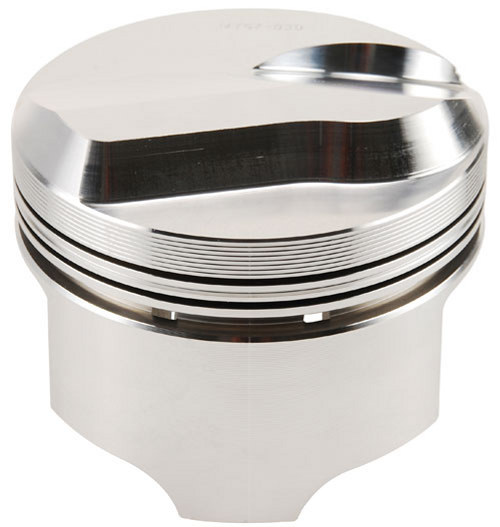

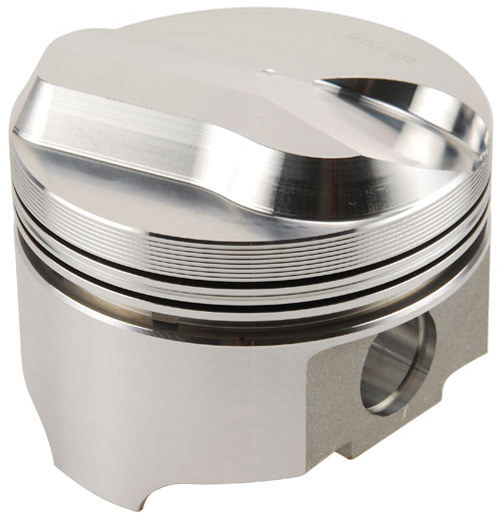

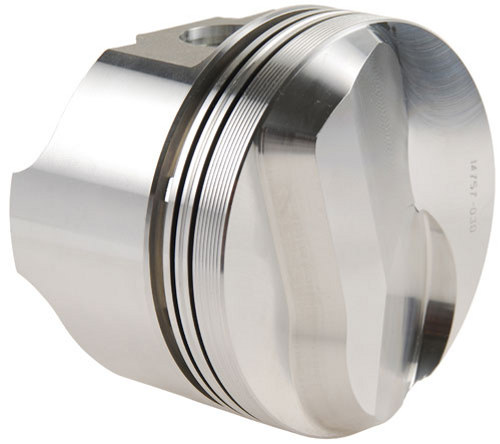

  Chevy 396 +30.0cc Dome Top SRS Pistons



Alternative Views:

SPORTSMAN RACE SERIES Ð SRS

SRS Probe SRS forged pistons are designed for high performance street and most racing applications. SRS pistons are available in a wide variety of designs, tuned to achieve the highest performance possible. Any combination from ultralight 2bbl oval track to high performance street, to heavily boosted race only cars will find Probe SRS Forged Pistons to be the perfect piston.

  • 2618-t61 Forged Aluminum
  • Lightweight wrist pins
  • Lightweight piston designs
  • Full floating wrist pins
  • Tight running clearances
  • Narrow piston rings
  • Low drag skirt design
  • Large variety of compression ratios
  • Design specific valve reliefs

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name Racer Price Qty Add
14757-030 SRS Pistons - Chevy 396 Dome Top +30.0cc (+.030") $596.99
14757-060 SRS Pistons - Chevy 396 Dome Top +30.0cc (+.060") $596.99
14757-090 SRS Pistons - Chevy 396 Dome Top +30.0cc (+.090") $596.99
Check the items you wish to purchase, then click


Technical Specs:
Item Code14757
Vendor NameProbe Industries
Product TypePistons
Product ModelSportsman Race Series - SRS
Engine Displacement (cu.in.)396
Engine FamilyCHEVROLET - Big Block V8
Material2618-t61 Forged Aluminum
Base Bore (in)4.095
Stroke (in)3.760
Rod Length (in)6.135
Compression Height (in)1.765
Top TypeDome Top
Net Head Volume (cc)+30.0
Dome Height (in)0.425
Deck Thickness (in)0.200
Valve Pocket Cutters2.350 I - 0.000 E
Valve Pocket Depth (in).280 I - .120 Up E
Weight Without Pin (g)618
Wrist Pin Diameter (in)0.990
Wrist Pin Length (in)2.930
Wrist Pin Weight (g)151
Pin Lock TypeDbl Spiral
Ring Set #315-0032
Top Ring Groove Size1/16 in.
Second Ring Groove Size1/16 in.
Oil Ring Groove Size3/16 in.
Top Ring Land (in)0.360
Second Ring Land (in)0.165
Bottom Ring Land (in)0.085
QuantitySold in sets of 8.




Compression Ratio:
Part NumberCylinder Head Volume
106.0cc112.0cc118.0cc124.0cc
14757-03010.469.859.328.84
14757-06010.589.979.428.94
14757-09010.7010.089.539.05
