  Probe Industries SRS Pistons - Chevy 400 Reverse Dome -22.5cc

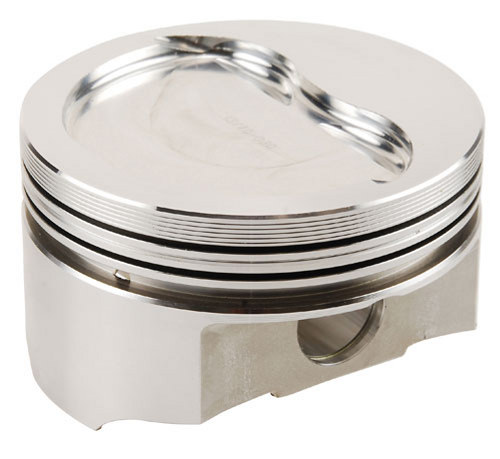

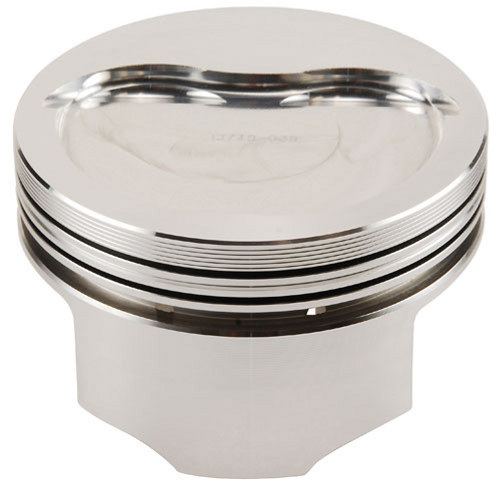

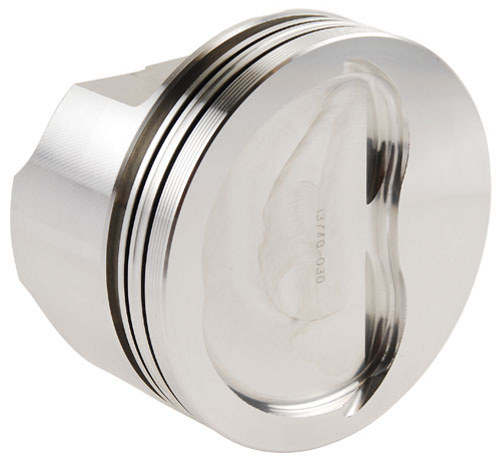

  Chevy 400 -22.5cc Reverse Dome SRS Pistons



Alternative Views:

SPORTSMAN RACE SERIES Ð SRS

SRS Probe SRS forged pistons are designed for high performance street and most racing applications. SRS pistons are available in a wide variety of designs, tuned to achieve the highest performance possible. Any combination from ultralight 2bbl oval track to high performance street, to heavily boosted race only cars will find Probe SRS Forged Pistons to be the perfect piston.

  • 2618-t61 Forged Aluminum
  • Lightweight wrist pins
  • Lightweight piston designs
  • Full floating wrist pins
  • Tight running clearances
  • Narrow piston rings
  • Low drag skirt design
  • Large variety of compression ratios
  • Design specific valve reliefs

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name Racer Price Qty Add
13740-030 SRS Pistons - Chevy 400 Reverse Dome -22.5cc (+.030") $570.99
13740-040 SRS Pistons - Chevy 400 Reverse Dome -22.5cc (+.040") $570.99
Check the items you wish to purchase, then click


Technical Specs:
Item Code13740
Vendor NameProbe Industries
Product TypePistons
Product ModelSportsman Race Series - SRS
Engine Displacement (cu.in.)400
Engine FamilyCHEVROLET - Small Block V8
Material2618-t61 Forged Aluminum
Base Bore (in)4.125
Stroke (in)3.750
Rod Length (in)5.700
Compression Height (in)1.425
Top TypeReverse Dome
Net Head Volume (cc)-22.5
Dish Depth (in)-0.185
Deck Thickness (in)0.165
Valve Pocket Cutters2.150 I - 2.150 E
Valve Pocket Depth (in).250 I - .250 E
Valve Pocket Max Depth.325 I - .325 E
Weight Without Pin (g)486
Wrist Pin Diameter (in)0.927
Wrist Pin Length (in)2.500
Wrist Pin Weight (g)118
Pin Lock TypeDbl Spiral
Ring Set #315-0032
Top Ring Groove Size1/16 in.
Second Ring Groove Size1/16 in.
Oil Ring Groove Size3/16 in.
Top Ring Land (in)0.280
Second Ring Land (in)0.190
Bottom Ring Land (in)0.085
QuantitySold in sets of 8.




Compression Ratio:
Part NumberCylinder Head Volume
58.0cc64.0cc68.0cc76.0cc
13740-03010.099.539.198.60
13740-04010.139.579.238.63
