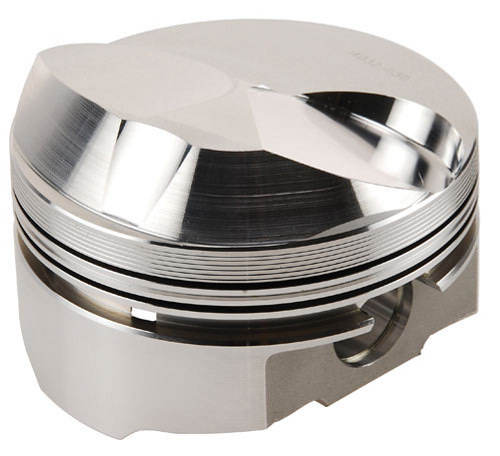

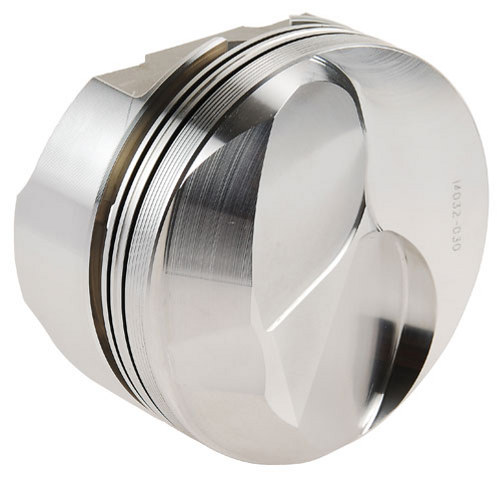

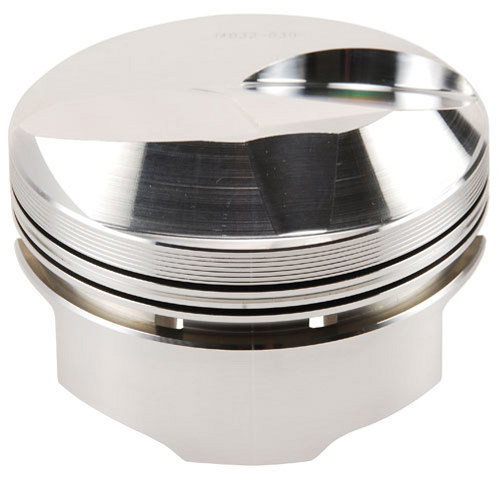

  Probe Industries SRS Pistons - Chevy 496 Dome Top +39.0cc
  Chevy 496 +39.0cc Dome Top SRS Pistons



Alternative Views:

SPORTSMAN RACE SERIES Ð SRS

SRS Probe SRS forged pistons are designed for high performance street and most racing applications. SRS pistons are available in a wide variety of designs, tuned to achieve the highest performance possible. Any combination from ultralight 2bbl oval track to high performance street, to heavily boosted race only cars will find Probe SRS Forged Pistons to be the perfect piston.

  • 2618-t61 Forged Aluminum
  • Lightweight wrist pins
  • Lightweight piston designs
  • Full floating wrist pins
  • Tight running clearances
  • Narrow piston rings
  • Low drag skirt design
  • Large variety of compression ratios
  • Design specific valve reliefs

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name Racer Price Qty Add
14032-030 SRS Pistons - Chevy 496 Dome Top +39.0cc (+.030") $625.99
14032-060 SRS Pistons - Chevy 496 Dome Top +39.0cc (+.060") $625.99
14032-070 SRS Pistons - Chevy 496 Dome Top +39.0cc (+.070") $625.99
14032-100 SRS Pistons - Chevy 496 Dome Top +39.0cc (+.100") $625.99
14032-125 SRS Pistons - Chevy 496 Dome Top +39.0cc (+.125") $625.99
Check the items you wish to purchase, then click


Technical Specs:
Item Code14032
Vendor NameProbe Industries
Product TypePistons
Product ModelSportsman Race Series - SRS
Engine Displacement (cu.in.)496
Engine FamilyCHEVROLET - Big Block V8
Material2618-t61 Forged Aluminum
Base Bore (in)4.250
Stroke (in)4.250
Rod Length (in)6.385
Compression Height (in)1.270
Top TypeDome Top
Net Head Volume (cc)+39.0
Dome Height (in)0.700
Deck Thickness (in)0.230
Valve Pocket Cutters2.350 I - 0.000 E
Valve Pocket Depth (in).320 I - .000E
Weight Without Pin (g)536
Wrist Pin Diameter (in)0.990
Wrist Pin Length (in)2.930
Wrist Pin Weight (g)151
Pin Lock TypeDbl Spiral
Ring Set #315-0035
Top Ring Groove Size1/16 in.
Second Ring Groove Size1/16 in.
Oil Ring Groove Size3/16 in.
Top Ring Land (in)0.360
Second Ring Land (in)0.170
Bottom Ring Land (in)0.075
Oil Rail Support Part #10202
QuantitySold in sets of 8.




Compression Ratio:
Part NumberCylinder Head Volume
106.0cc112.0cc118.0cc124.0cc
14032-03015.1414.0413.0912.28
14032-06015.3114.1913.2412.42
14032-07015.3614.2513.2912.46
14032-10015.5314.4013.4412.60
14032-12515.6714.5313.5612.72
