  Probe Industries SRS Pistons - Chrysler 440 Reverse Dome -12.0cc

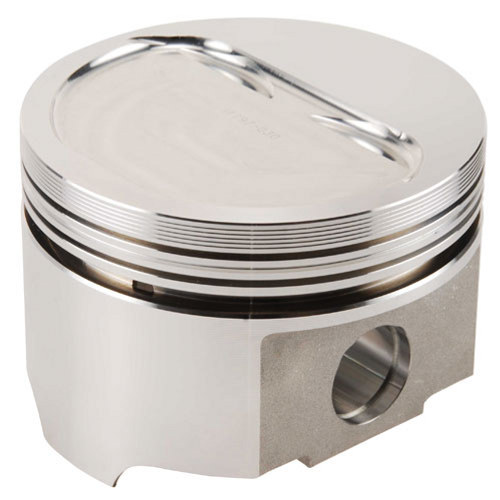

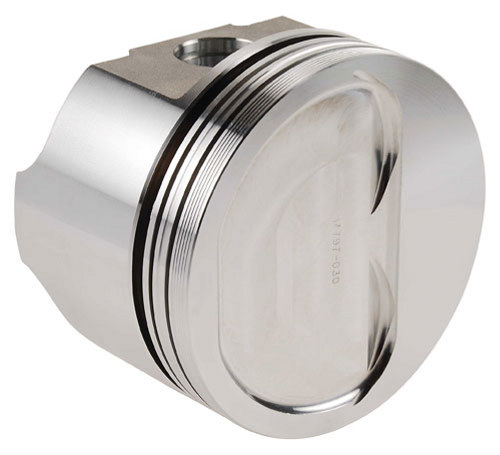

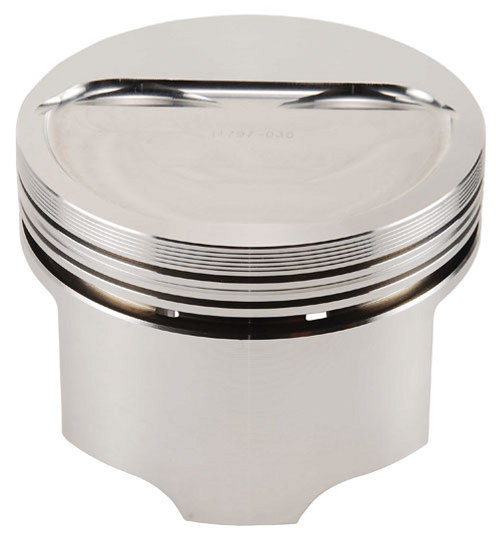

  Chrysler 440 -12.0cc Reverse Dome SRS Pistons



Alternative Views:

SPORTSMAN RACE SERIES Ð SRS

SRS Probe SRS forged pistons are designed for high performance street and most racing applications. SRS pistons are available in a wide variety of designs, tuned to achieve the highest performance possible. Any combination from ultralight 2bbl oval track to high performance street, to heavily boosted race only cars will find Probe SRS Forged Pistons to be the perfect piston.

  • 2618-t61 Forged Aluminum
  • Lightweight wrist pins
  • Lightweight piston designs
  • Full floating wrist pins
  • Tight running clearances
  • Narrow piston rings
  • Low drag skirt design
  • Large variety of compression ratios
  • Design specific valve reliefs

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name Racer Price Qty Add
14797-030 SRS Pistons - Chrysler 440 Reverse Dome -12.0cc (+.030") $625.99
14797-040 SRS Pistons - Chrysler 440 Reverse Dome -12.0cc (+.040") $625.99
14797-060 SRS Pistons - Chrysler 440 Reverse Dome -12.0cc (+.060") $625.99
Check the items you wish to purchase, then click


Technical Specs:
Item Code14797
Vendor NameProbe Industries
Product TypePistons
Product ModelSportsman Race Series - SRS
Engine Displacement (cu.in.)440
Engine FamilyCHRYSLER-DODGE-PLYMOUTH - Big Block V8
Material2618-t61 Forged Aluminum
Base Bore (in)4.320
Stroke (in)3.750
Rod Length (in)6.768
Compression Height (in)2.065
Top TypeReverse Dome
Net Head Volume (cc)-12.0
Dish Depth (in)-0.090
Deck Thickness (in)0.210
Valve Pocket Cutters2.400I - 2.400E
Valve Pocket Depth (in).150I - .150 E
Weight Without Pin (g)687
Wrist Pin Diameter (in)0.990
Wrist Pin Length (in)2.930
Wrist Pin Weight (g)151
Pin Lock TypeDbl Spiral
Ring Set #315-0003
Top Ring Groove Size1/16 in.
Second Ring Groove Size1/16 in.
Oil Ring Groove Size3/16 in.
Top Ring Land (in)0.300
Second Ring Land (in)0.200
Bottom Ring Land (in)0.100
QuantitySold in sets of 8.




Compression Ratio:
Part NumberCylinder Head Volume
72.0cc80.0cc84.0cc86.0cc
14797-03010.499.769.449.29
14797-04010.539.809.479.32
14797-06010.619.879.549.39
