  Probe Industries SRS Pistons - Chrysler 440 Flat Top -4.0cc

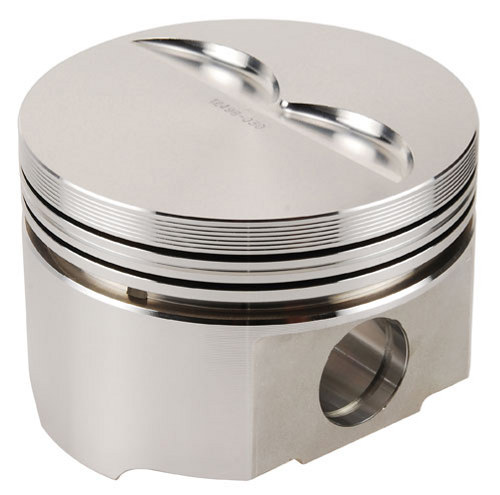

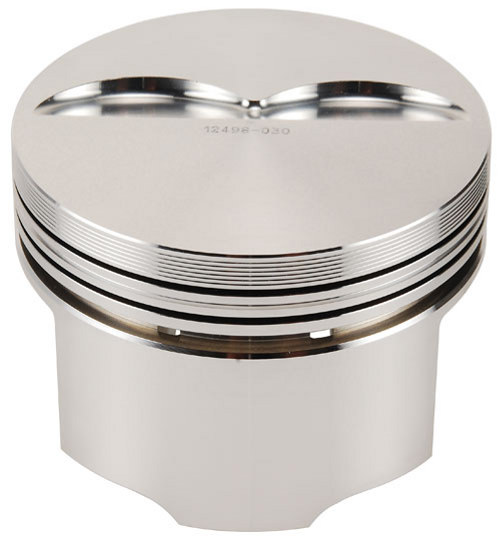

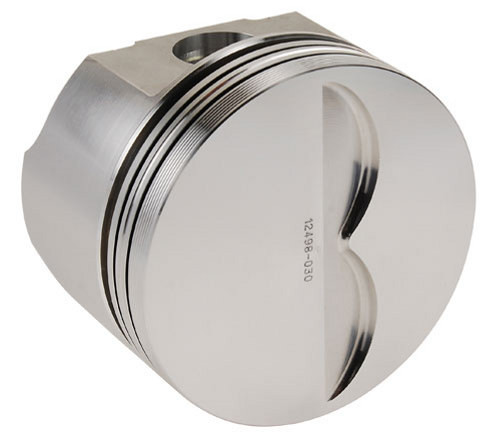

  Chrysler 440 -4.0cc Flat Top SRS Pistons



Alternative Views:

SPORTSMAN RACE SERIES – SRS

SRS Probe SRS forged pistons are designed for high performance street and most racing applications. SRS pistons are available in a wide variety of designs, tuned to achieve the highest performance possible. Any combination from ultralight 2bbl oval track to high performance street, to heavily boosted race only cars will find Probe SRS Forged Pistons to be the perfect piston.

  • 2618-t61 Forged Aluminum
  • Lightweight wrist pins
  • Lightweight piston designs
  • Full floating wrist pins
  • Tight running clearances
  • Narrow piston rings
  • Low drag skirt design
  • Large variety of compression ratios
  • Design specific valve reliefs

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name Racer Price Qty Add
12498-030 SRS Pistons - Chrysler 440 Flat Top -4.0cc (+.030") $552.99
12498-040 SRS Pistons - Chrysler 440 Flat Top -4.0cc (+.040") $552.99
12498-060 SRS Pistons - Chrysler 440 Flat Top -4.0cc (+.060") $552.99
Check the items you wish to purchase, then click


Technical Specs:
Item Code12498
Vendor NameProbe Industries
Product TypePistons
Product ModelSportsman Race Series - SRS
Engine Displacement (cu.in.)440
Engine FamilyCHRYSLER-DODGE-PLYMOUTH - Big Block V8
Material2618-t61 Forged Aluminum
Base Bore (in)4.320
Stroke (in)3.750
Rod Length (in)6.768
Compression Height (in)2.065
Top TypeFlat Top
Net Head Volume (cc)-4.0
Deck Thickness (in)0.350
Valve Pocket Cutters2.400I - 2.400E
Valve Pocket Depth (in).150I - .150 E
Weight Without Pin (g)730
Wrist Pin Diameter (in)1.094
Wrist Pin Length (in)2.750
Wrist Pin Weight (g)158
Pin Lock TypeDbl Spiral
Ring Set #315-0003
Top Ring Groove Size1/16 in.
Second Ring Groove Size1/16 in.
Oil Ring Groove Size3/16 in.
Top Ring Land (in)0.340
Second Ring Land (in)0.225
Bottom Ring Land (in)0.125
QuantitySold in sets of 8.




Compression Ratio:
Part NumberCylinder Head Volume
72.0cc80.0cc84.0cc86.0cc
12498-03011.3510.4910.119.93
12498-04011.3910.5310.159.97
12498-06011.4710.6110.2210.04
