  Probe Industries SRS Pistons - Pontiac 400 Flat Top -5.5cc

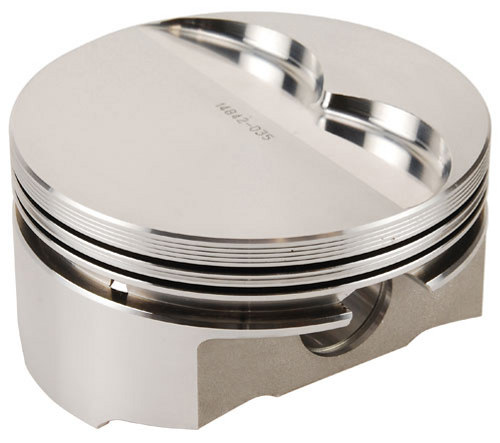

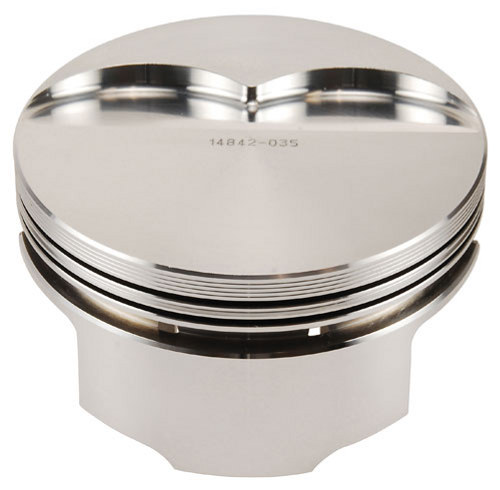

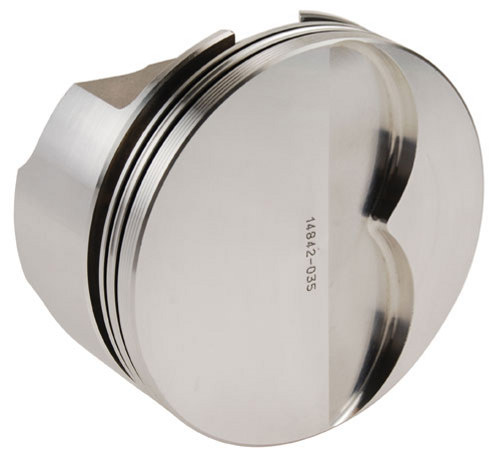

  Pontiac 400 -5.5cc Flat Top SRS Pistons



Alternative Views:

SPORTSMAN RACE SERIES Ð SRS

SRS Probe SRS forged pistons are designed for high performance street and most racing applications. SRS pistons are available in a wide variety of designs, tuned to achieve the highest performance possible. Any combination from ultralight 2bbl oval track to high performance street, to heavily boosted race only cars will find Probe SRS Forged Pistons to be the perfect piston.

  • 2618-t61 Forged Aluminum
  • Lightweight wrist pins
  • Lightweight piston designs
  • Full floating wrist pins
  • Tight running clearances
  • Narrow piston rings
  • Low drag skirt design
  • Large variety of compression ratios
  • Design specific valve reliefs

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name Racer Price Qty Add
14842-035 SRS Pistons - Pontiac 400 Flat Top -5.5cc (+.035") $570.99
14842-065 SRS Pistons - Pontiac 400 Flat Top -5.5cc (+.065") $570.99
Check the items you wish to purchase, then click


Technical Specs:
Item Code14842
Vendor NameProbe Industries
Product TypePistons
Product ModelSportsman Race Series - SRS
Engine Displacement (cu.in.)400
Engine FamilyPONTIAC - Big Block V8
Material2618-t61 Forged Aluminum
Base Bore (in)4.120
Stroke (in)4.500
Rod Length (in)6.800
Compression Height (in)1.170
Top TypeFlat Top
Net Head Volume (cc)-5.5
Deck Thickness (in)0.275
Valve Pocket Cutters2.400 I - 2.400 E
Valve Pocket Depth (in).230I - .230E
Weight Without Pin (g)455
Wrist Pin Diameter (in)0.990
Wrist Pin Length (in)2.500
Pin Lock TypeDbl Spiral
Ring Set #315-0032
Top Ring Groove Size1/16 in.
Second Ring Groove Size1/16 in.
Oil Ring Groove Size3/16 in.
Top Ring Land (in)0.250
Second Ring Land (in)0.125
Bottom Ring Land (in)0.070
Oil Rail Support Part #11961
QuantitySold in sets of 8.




Compression Ratio:
Part NumberCylinder Head Volume
72.0cc87.0cc
14842-03512.2610.63
14842-06512.4010.76
