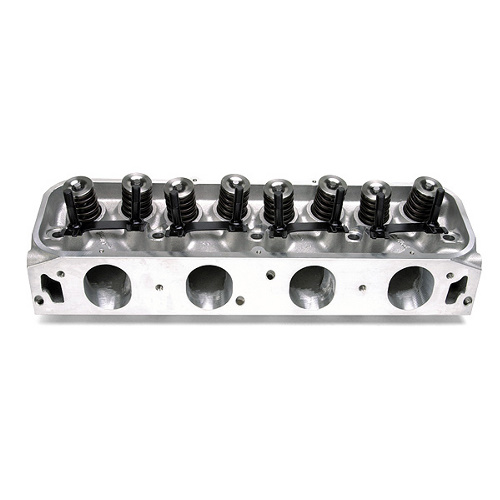

Edelbrock Performer RPM Cylinder Head - Ford 429/460 Big Block, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Racer Price
$1,166.99
Product Code:
EDE-61649
Description
Technical Specs
Designed for 1968-87 429/460 Fords and the SVO 514 engine
Victor Jr. heads #61669 are complete with titanium retainers and high-quality valve springs suitable for use with solid roller camshafts
* On a 514-inch engine, these heads are capable of 624 hp on 91 octane gas… that beats the competition by over 65 horsepower!
Item Code
EDE-61649
Vendor Name
Edelbrock
Product Type
Cylinder Head
Product Model
Performer RPM
Application
1968-87 429/460 Fords and the SVO 514 engine
Engine Family
FORD-LINCOLN-MERCURY - Big Block V8
Material
Aluminum
Finish
Natural
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
75cc
Intake Runner Volume (cc)
310cc
Exhaust Runner Volume (cc)
100cc
CNC Machined Combustion Chamber
No
CNC Machined Intake Runner
No
CNC Machined Exhaust Runner
No
Combustion Chamber Style
Standard
Intake Port Shape
Cobra Jet
Intake Port Location
Standard
Exhaust Port Location
Standard
Valves Included
Yes
Intake Valve Diameter (in)
2.190"
Exhaust Valve Diameter (in)
1.760"
Valve Springs Included
Yes
Maximum Valve Lift (in)
0.700"
Outside Diameter of Outer Spring (in)
1.550"
Retainers Included
Yes
Rocker Arm Studs Included
Yes
Rocker Arm Nuts Included
No
Rocker Arm Nut Thread Size
7/16"
Rocker Arms Included
No
Guideplates Included
Yes
Guideplate Pushrod Diameter (in)
3/8"
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Quantity
Sold individually.
