Home
>
Cylinder Heads
>
Ford - 302 Small Block V8
>
Aluminum Cylinder Heads
>
Assembled
>

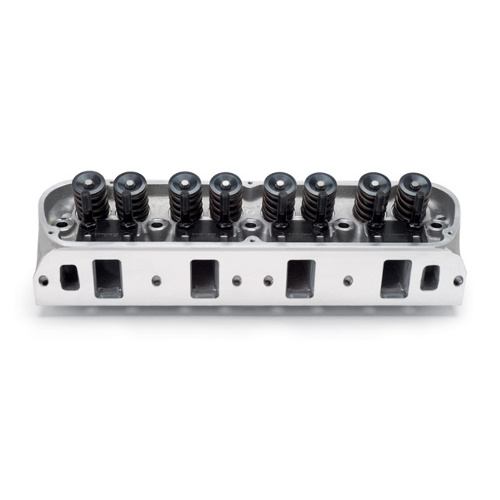

Edelbrock Victor Jr. Cylinder Head - Ford 289-351W Small Block, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Racer Price
$675.99
Product Code:
EDE-77179
Description
Technical Specs
500+ horsepower potential out-of-the-box using stock valve train geometry
Available with 60cc or 70cc combustion chambers
CNC gasket-matched port entries/exits with blended valve bowls
Valve cover rail raised .150"
* A relief in the head allows most roller lifters to be changed without removing heads
Item Code
EDE-77179
Vendor Name
Edelbrock
Product Type
Cylinder Head
Product Model
Victor Jr.
Application
1965-95 289, 302, and 351W V8s
Engine Family
FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material
Aluminum
Finish
Natural
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
60cc
Intake Runner Volume (cc)
210cc
Exhaust Runner Volume (cc)
75cc
CNC Machined Combustion Chamber
No
CNC Machined Intake Runner
No
CNC Machined Exhaust Runner
No
Combustion Chamber Style
Standard
Intake Port Shape
Rectangular
Intake Port Location
Standard
Exhaust Port Shape
Square
Exhaust Port Location
Raised 0.130"
Valves Included
Yes
Intake Valve Diameter (in)
2.050"
Exhaust Valve Diameter (in)
1.600"
Intake Valve Angle
20 degree
Exhaust Valve Angle
20 degree
Valve Springs Included
No
Outside Diameter of Outer Spring (in)
1.550"
Damper Spring Included
No
Retainers Included
No
Valve Locks Included
No
Valve Stem Seals Included
No
Rocker Arm Studs Included
No
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
No
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Quantity
Sold individually.
