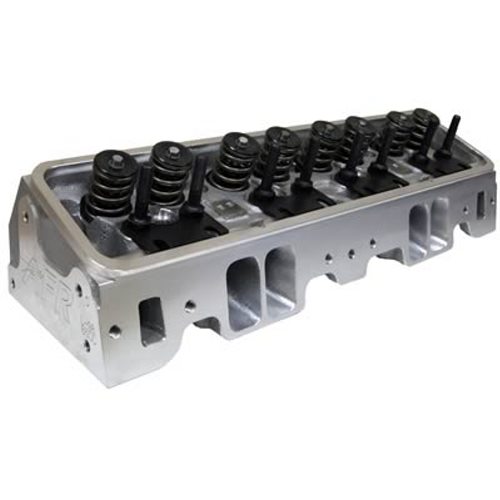

AFR 195cc Chevy Small Block Eliminator Street Cylinder Heads, Assembled
Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.
Call For Price and Availability!
Videos
Technical Specs
The AFR Emissions Legal (versions from 1969-94 with heat riser, CARB EO #D-250-2), 195cc intake port small block Chevy cylinder heads are available in your choice of straight or L98 angle plug versions. These cylinder heads feature a 65cc or 75cc combustion chamber with a 64cc exhaust port and a 3/4î thick head deck (ideal for nitrous or blower applications). Standard valves are 2.050 (comp package has 2.080) intake and 1.600 exhaust with AFRÍs hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of 2000 rpm to 6500 rpm, 23_ valve angle, and standard valve spacing make this the perfect street head for 350 cid to 400 cid engines from 1955-86. Available for 1987 to present engines with center bolt valve covers and 2 center intake bolts at 72_ angle. No special parts are required. Dual valve cover bolt pattern is standard. Exhaust port is raised .100 over GM L98 cylinder heads. Note: Hydraulic roller cams typically experience valve float at 6000-6200 rpm because of their fast ramp rates. AFR suggest you upgrade your springs to AFR part #8047, 1.290 O.D. with higher spring pressures and use our Patented ñHydra Rev Kitî to reduce chances of valve float associated with rpm 6000 or higher. Chevrolet Small Block - 195cc CNC Street Ported Heads - 65cc Combustion Chambers, Straight Plug - Fully Assembled
Item Code
1034
Vendor Name
AFR
Product Type
Cylinder Head
Product Model
Eliminator - CNC Street Porting
Engine Displacement (cu.in.)
350-400
Engine Family
CHEVROLET - Small Block
Material
Aluminum
Cylinder Head Style
Assembled
Combustion Chamber Volume (cc)
65cc
Intake Runner Volume (cc)
195cc
Exhaust Runner Volume (cc)
64cc
CNC Machined Combustion Chamber
Yes
CNC Machined Intake Runner
Yes
CNC Machined Exhaust Runner
Yes
Spark Plug Style/Type
Straight
Valves Included
Yes
Intake Valve Diameter (in)
2.050"
Exhaust Valve Diameter (in)
1.600"
Valve Springs Included
Yes
Springs Per Valve
2
Maximum Valve Lift (in)
.600"
Outside Diameter of Outer Spring (in)
1.290"
Retainers Included
Yes
Retainer Material
4140 Chrome Moly
Valve Locks Included
Yes
Valve Stem Seals Included
Yes
Rocker Arm Studs Included
Yes
Rocker Arm Nuts Included
No
Rocker Arms Included
No
Guideplates Included
Yes
Accessory Holes Drilled
Yes
Valve Guides Included
Yes
Valve Guide Material
Bronze
Valve Seat Material
Iron
Heat Crossover
Yes
Quantity
Sold as a pair.
