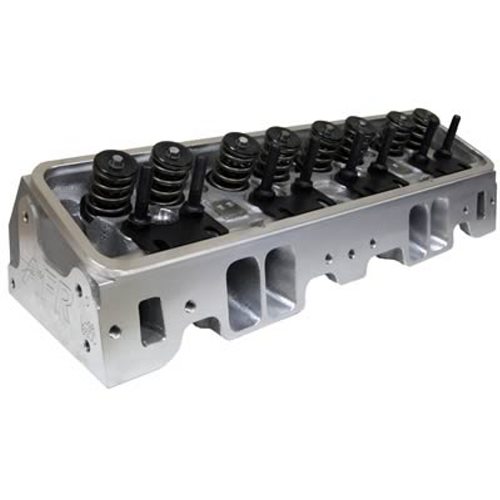

AFR 195cc Chevy Small Block Eliminator Street Cylinder Heads, Bare
AFR 195cc Chevy Small Block Eliminator Street Cylinder Heads, Bare

Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.




Racer Price $1,338.00

Videos
Technical Specs

The AFR Emissions Legal (versions from 1969-94 with heat riser, CARB EO #D-250-2), 195cc intake port small block Chevy cylinder heads are available in your choice of straight or L98 angle plug versions. These cylinder heads feature a 65cc or 75cc combustion chamber with a 64cc exhaust port and a 3/4 thick head deck (ideal for nitrous or blower applications). Standard valves are 2.050 (comp package has 2.080) intake and 1.600 exhaust with AFRs hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of 2000 rpm to 6500 rpm, 23_ valve angle, and standard valve spacing make this the perfect street head for 350 cid to 400 cid engines from 1955-86. Available for 1987 to present engines with center bolt valve covers and 2 center intake bolts at 72_ angle. No special parts are required. Dual valve cover bolt pattern is standard. Exhaust port is raised .100 over GM L98 cylinder heads. Note: Hydraulic roller cams typically experience valve float at 6000-6200 rpm because of their fast ramp rates. AFR suggest you upgrade your springs to AFR part #8047, 1.290 O.D. with higher spring pressures and use our Patented Hydra Rev Kit to reduce chances of valve float associated with rpm 6000 or higher. Chevrolet Small Block - 195cc CNC Street Ported Heads - 65cc Combustion Chambers, Straight Plug - Bare Heads


For more videos, check out our Coast High Performance/Custom Performance Engines YouTube pages. Click below
