  Home > Pistons > CP Carrillo >

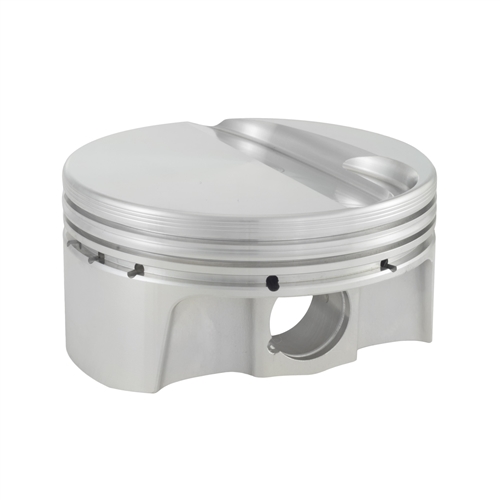

CP Bullet Pistons - Chevrolet 396 - 1.765 C/H - 4.125 Base Bore - Dome - 16.0cc
CP Bullet Forged Pistons

Photo may not be actual product






Available Part Numbers/Oversize

CPP-BBC5108-030 - 4.155

CP Bullet Forged Pistons

The Game Has Changed

As the global economic climate continues to change, CP-Carrillo is proud to announce a new product division to stay current as the industry shifts to new directions. This series of pistons and rods will be the flagship for this new venture and will incorporate everything that has made CP-Carrillo the industry leader. Inspired by the top forms of motorsports, the goal is to offer a piston and rod alternative by introducing a high quality product at a reasonable price. Whether it is engineering or manufacturing, CP-Carrillo is constantly looking for ways to make their parts better. Extensive research and development along with centralized manufacturing cells have enabled CP-Carrillo to accomplish this goal and pass along the savings to our customers.

CP Bullet Series Pistons

Features Included:

Pistons manufactured from 2618 alloy for strength and durability

  • Balanced to + or – 1 gram
  • Dual forced pin oilers
  • Contact reduction grooves
  • Accumulator Grooves
  • Contemporary ring set included (Comes standard with 1/16 x 1/16 x 3/16 ring pack)
  • Forged side relief
  • Chromoly wrist pins with wire locks
  • FEA designed forging
  • Tight tolerances
  • USA made
  • Price includes pistons and oil rail spacers (as required), wrist pins, spiral locks and piston rings.


Item# Item Name Price Qty Add
CPP-BBC5108-030 CP Bullet Pistons - Chevrolet 408 - Dome - 4.155 Bore (.030) - 13.6cc
$0.00
Check the items you wish to purchase, then click


Technical Specs:
Item Code CPP-BBC5108
Vendor
CP Pistons
Product Type Pistons
Product Model Bullet Series
Engine Displacement 396
Nitrous Not recommended
Forced Induction Not recommended
Engine Family Chevrolet - 402 Based V8
Material 2618-t61 Forged Aluminum
Base Bore 4.125
Stroke 3.760
Rod Length 6.135
Compression Height 1.765
Top Type Dome
Net Head Volume 13.6
Dome Height .175
Deck Thickness
Valve Pocket Location BBC Standard
Valve Pocket Cutters
Valve Pocket Depth .250 Intake / Slant Cut Exhaust
Weight Without Pin 558
Wrist Pin Type 5100 Straight Wall
Wrist Pin Diameter .990
Wrist Pin Length 2.500
Wall Thickness .150
Wrist Pin Weight 122
Pin Lock Type Wire
Ring Grooves 1/16 1/16 3/16
Moly Ring Set TOT-CR2012
Steel Ring Set TOT-CS2012
Oil Rail Spacer No
Rings Included Yes
Ring Lands
Quantity Sold in sets of 8
Notes




Compression Ratio:

Cylinder Head Volume
Part Number Net cc 109cc 114cc 118cc 123cc
CPP-BBC5108-030 13.6 10.39 9.70 9.27 8.95
Computed with .010 deck and .041 gasket
