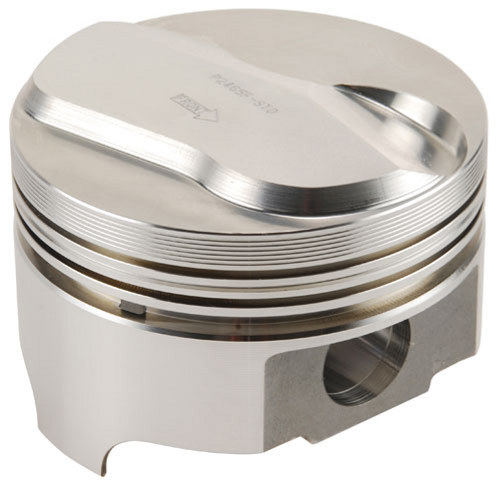

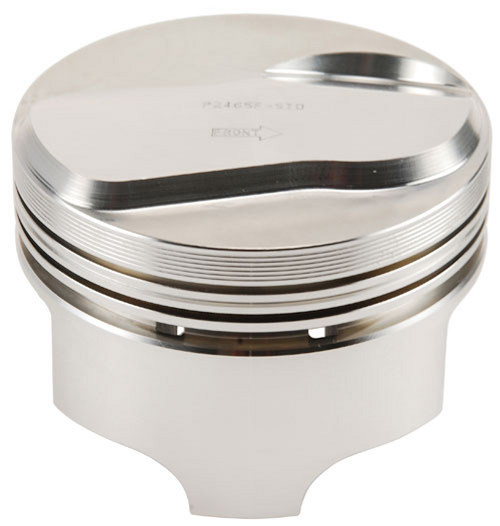

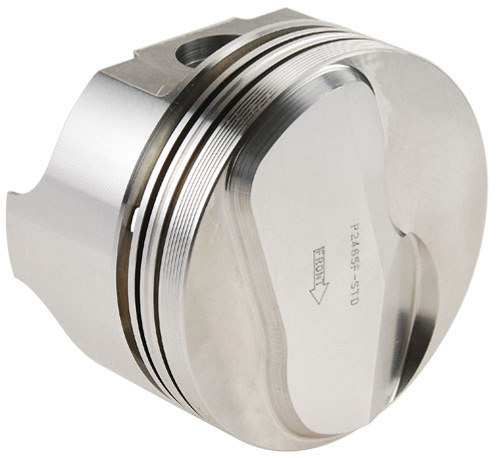

Probe Industries FPS Pistons - Chevy 454 Dome Top +18.0cc
Chevy 454 +18.0cc Dome Top FPS Pistons





Alternative Views:


Available Part Numbers/Oversize

P2465F-STD - 4.250
P2465F-030 - 4.280
P2465F-040 - 4.290
P2465F-060 - 4.310
P2465F-070 - 4.320

FACTORY PERFORMANCE SERIES - FPS

Probe FPS Forged Pistons are designed for heavy duty (towing, etc.) or high performance street car, trucks, marine and some racing applications. FPS pistons are far stronger than hypereutectic cast pistons. May be used with boost and nitrous oxide.

  • 4032 Forged Aluminum
  • Increased valve clearance
  • Tight piston to wall clearance
  • Reduced piston weight
  • Reinforced piston skirts
  • Offset wrist pins for quiet operation (in select applications)
  • Press-fit or floating wrist pins(do not use locks in press-fit applications)

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name CHP Price Qty Add
P2465F-030 FPS Pistons - Chevy 454 Dome Top +18.0cc (+.030)
$0.00
P2465F-040 FPS Pistons - Chevy 454 Dome Top +18.0cc (+.040)
$0.00
P2465F-060 FPS Pistons - Chevy 454 Dome Top +18.0cc (+.060)
$0.00
P2465F-070 FPS Pistons - Chevy 454 Dome Top +18.0cc (+.070)
$0.00
P2465F-STD FPS Pistons - Chevy 454 Dome Top +18.0cc (STD)
$0.00
Check the items you wish to purchase, then click


Technical Specs:
Item CodeP2465F
Vendor
Probe Industries
Product TypePistons
Product ModelFactory Performance Series - FPS
Engine Displacement
454
Engine FamilyCHEVROLET - Big Block V8
Material4032 Forged Aluminum
Base Bore
4.250
Stroke
4.000
Rod Length
6.135
Compression Height
1.645
Top TypeDome Top
Net Head Volume
+18.0
Dome Height
.220
Deck Thickness
.250
Valve Pocket Cutters2.350 Intake - .000 Exhaust
Valve Pocket Depth
.220 Intake - .000 Exhaust
Weight Without Pin
638
Wrist Pin Diameter
.990
Wrist Pin Length
2.920
Wrist Pin Weight
150
Wrist Pin PlacementCentered
Pin Lock TypeDouble Spiral (press-fit may be used)
Ring Set
40203CP
Top Ring Groove
5/64
Second Ring Groove
5/64
Oil Ring Groove
3/16
Top Ring Land
.350
Second Ring Land
.200
Bottom Ring Land
.100
QuantitySold in sets of 8




Compression Ratio:

Part Number
Cylinder Head Volume
106.0cc112.0cc118.0cc124.0cc
P2465F-STD10.339.809.338.90
P2465F-03010.449.919.439.00
P2465F-04010.489.959.479.04
P2465F-06010.5610.029.549.10
P2465F-07010.6010.069.579.14
