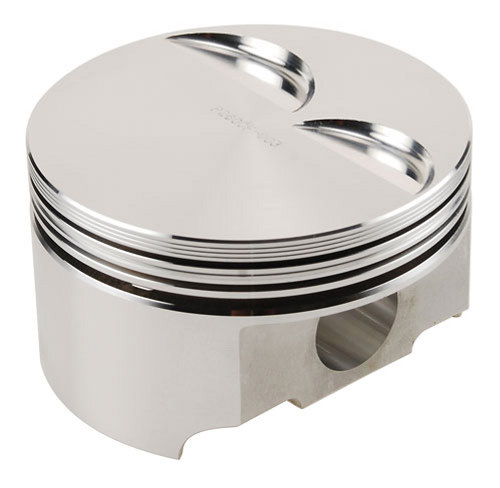

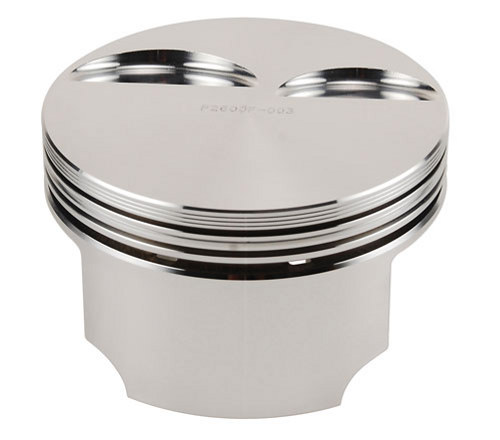

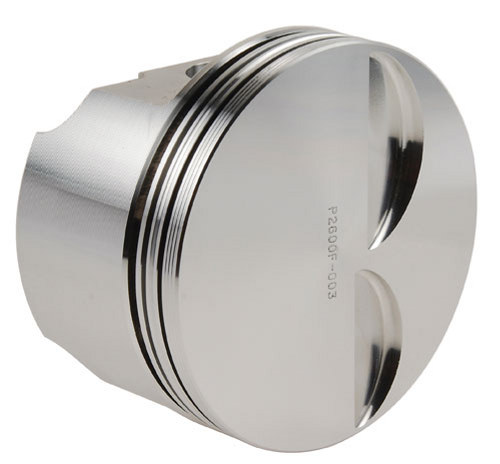

Probe Industries FPS Pistons - Chevy LS 5.7L Flat Top -3.0cc
Chevy LS 5.7L -3.0cc Flat Top FPS Pistons





Alternative Views:


Available Part Numbers/Oversize

P2600F-003 - 3.902

FACTORY PERFORMANCE SERIES - FPS

Probe FPS Forged Pistons are designed for heavy duty (towing, etc.) or high performance street car, trucks, marine and some racing applications. FPS pistons are far stronger than hypereutectic cast pistons. May be used with boost and nitrous oxide.

  • 4032 Forged Aluminum
  • Increased valve clearance
  • Tight piston to wall clearance
  • Reduced piston weight
  • Reinforced piston skirts
  • Offset wrist pins for quiet operation (in select applications)
  • Press-fit or floating wrist pins(do not use locks in press-fit applications)

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name CHP Price Qty Add
P2600F-003 FPS Pistons - Chevy LS 5.7L Flat Top -3.0cc (+.003)
$0.00
Check the items you wish to purchase, then click


Technical Specs:
Item CodeP2600F
Vendor
Probe Industries
Product TypePistons
Product ModelFactory Performance Series - FPS
Engine Displacement
5.7L
Engine FamilyCHEVROLET - LS Series V8
Material2618-t61 Forged Aluminum
Base Bore
3.899
Stroke
3.622
Rod Length
6.098
Compression Height
1.340
Top TypeFlat Top
Net Head Volume
-3.0
Deck Thickness
.210
Valve Pocket Cutters2.200 Intake - 1.800 Exhaust
Valve Pocket Depth
.150 Intake - .130 Exhaust
Weight Without Pin
376
Wrist Pin Diameter
.945
Wrist Pin Length
2.300
Wrist Pin Weight
152
Wrist Pin PlacementCentered
Pin Lock TypeSingle Spiral
Ring Set
CR7984
Top Ring Groove
1.5
Second Ring Groove
1.5
Oil Ring Groove
3.0
Top Ring Land
.200
Second Ring Land
.155
Bottom Ring Land
.075
QuantitySold in sets of 8




Compression Ratio:

Part Number
Cylinder Head Volume
58.0cc64.0cc68.0cc76.0cc
P2600F-00310.8710.2310.008.98
