Probe Industries FPS Pistons - Ford 302 Flat Top -4.0cc
Ford 302 -4.0cc Flat Top FPS Pistons

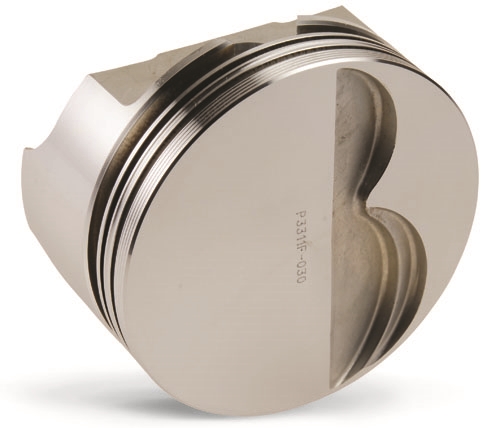

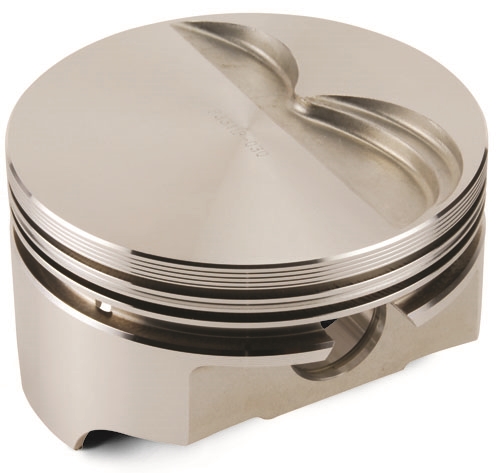

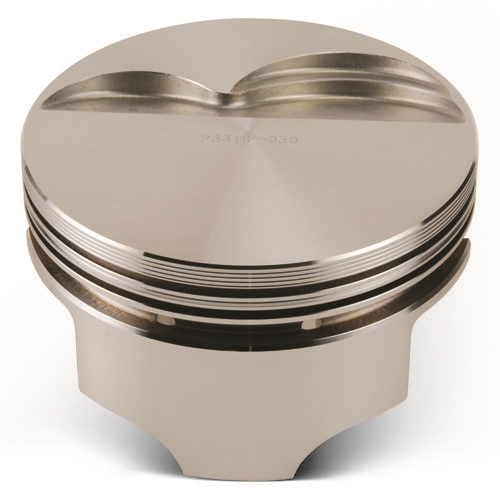

Photo is representative, may not be actual part number



Alternative Views:


Available Part Numbers/Oversize

P2488F-STD
P2488F-030
P2488F-040

FACTORY PERFORMANCE SERIES - FPS

Probe FPS Forged Pistons are designed for heavy duty (towing, etc.) or high performance street car, trucks, marine and some racing applications. FPS pistons are far stronger than hypereutectic cast pistons. May be used with boost and nitrous oxide.

  • 4032 Forged Aluminum
  • Increased valve clearance
  • Tight piston to wall clearance
  • Reduced piston weight
  • Reinforced piston skirts
  • Offset wrist pins for quiet operation (in select applications)
  • Press-fit or floating wrist pins(do not use locks in press-fit applications)

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name CHP Price Qty Add
P2488F-030 FPS Pistons - Ford 302 Flat Top -4.0cc (+.030)
$0.00
P2488F-040 FPS Pistons - Ford 302 Flat Top -4.0cc (+.040)
$0.00
P2488F-STD FPS Pistons - Ford 302 Flat Top -4.0cc (STD)
$0.00
Check the items you wish to purchase, then click


Technical Specs:
Item CodeP2488F
Vendor
Probe Industries
Product TypePistons
Product ModelFactory Performance Series - FPS
Engine Displacement
302
Engine FamilyFORD - 302 Based V8
Material4032 Forged Aluminum
Base Bore
4.000
Stroke
3.000
Rod Length
5.090
Compression Height
1.619
Top TypeFlat Top
Net Head Volume
-4.0
Deck Thickness
.350
Valve Pocket Diameter
2.150 Intake - 1.700 Exhaust
Valve Pocket Depth
270/.150 Intake - .200 Exhaust
Weight Without Pin
553
Wrist Pin Diameter
.912
Wrist Pin Length
2.500
Wrist Pin Weigh
146
Wrist Pin PlacementCentered
Pin Lock TypeDouble Spiral (press-fit may be used)
Ring Set #CR6434
Top Ring Groove
1.5
Second Ring Groove
1.5
Oil Ring Groove
4.0
Top Ring Land
.260
Second Ring Land
.190
Bottom Ring Land
.090
QuantitySold in sets of 8




Compression Ratio:

Part Number
Cylinder Head Volume
58.0cc61.0cc64.0cc68.0cc
P2488F-0309.659.308.988.60
P2488F-0409.689.349.028.63
P2488F-STD9.549.208.888.50
