Probe Industries FPS Pistons - Ford 408W Dish Top -24.0cc

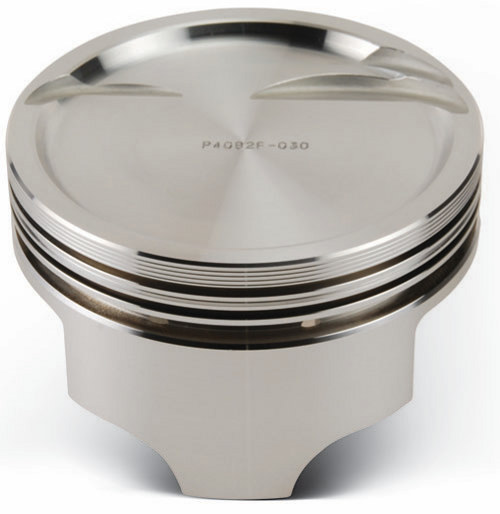

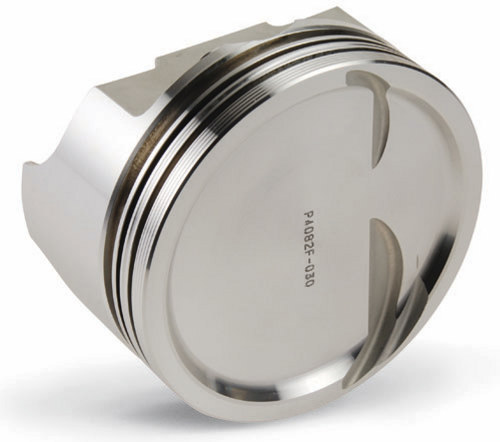

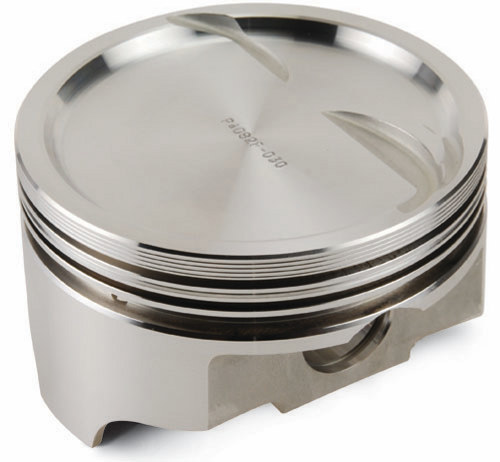

Ford 408W -24.0cc Dish Top FPS Pistons





Alternative Views:


Available Part Numbers/Oversize

P4082F-030 - 4.030
P4082F-040 - 4.040

FACTORY PERFORMANCE SERIES - FPS

Probe FPS Forged Pistons are designed for heavy duty (towing, etc.) or high performance street car, trucks, marine and some racing applications. FPS pistons are far stronger than hypereutectic cast pistons. May be used with boost and nitrous oxide.

  • 4032 Forged Aluminum
  • Increased valve clearance
  • Tight piston to wall clearance
  • Reduced piston weight
  • Reinforced piston skirts
  • Offset wrist pins for quiet operation (in select applications)
  • Press-fit or floating wrist pins(do not use locks in press-fit applications)

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name CHP Price Qty Add
P4082F-030 FPS Pistons - Ford 408W Dish Top -24.0cc (+.030)
$0.00
P4082F-040 FPS Pistons - Ford 408W Dish Top -24.0cc (+.040)
$0.00
Check the items you wish to purchase, then click


Technical Specs:
Item CodeP4082F
Vendor
Probe Industries
Product TypePistons
Product ModelFactory Performance Series - FPS
Engine Displacement
408
Engine FamilyFORD - 351 Windsor Based V8
Material4032 Forged Aluminum
Base Bore
4.000
Stroke
4.000
Rod Length
6.200
Compression Height
1.280
Top TypeDish Top
Net Head Volume
-24.0
Dish Depth
.160
Deck Thickness
.165
Valve Pocket Diameter
2.150 Intake - 1.700 Exhaust
Valve Pocket Depth
.250 Intake - .200 Exhaust
Weight Without Pin
414
Wrist Pin Diameter
.927
Wrist Pin Length
2.500
Wrist Pin Weight
118
Wrist Pin PlacementCentered
Pin Lock TypeDouble Spiral (press-fit may be used)
Ring Set
40564CP
Top Ring Groove
5/64
Second Ring Groove
5/64
Oil Ring Groove
3/16
Top Ring Land
.220
Second Ring Land
.140
Bottom Ring Land
.070
QuantitySold in sets of 8




Compression Ratio:

Part Number
Cylinder Head Volume
58.0cc61.0cc64.0cc68.0cc
P4082F-03010.049.759.499.15
P4082F-04010.089.799.529.19
