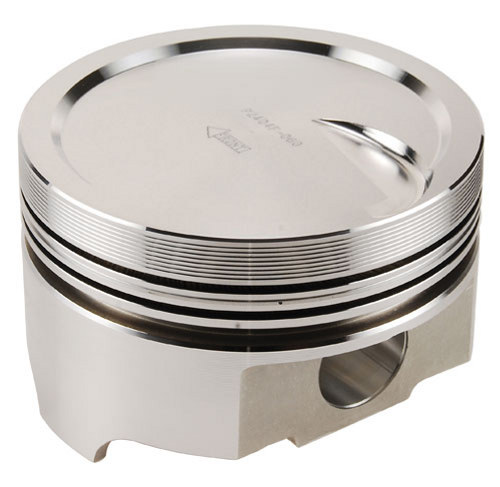

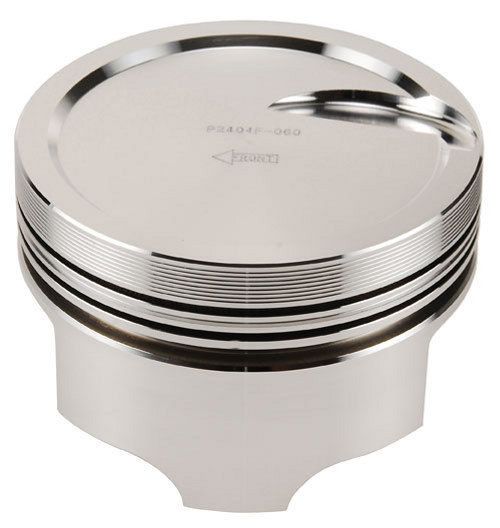

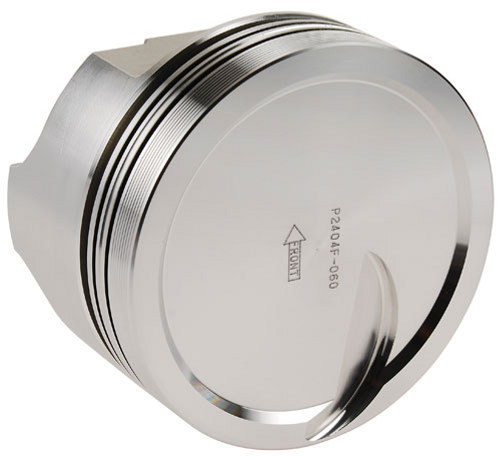

Probe Industries FPS Pistons - Ford 460 Dish Top -24.4cc
Ford 460 -24.4cc Dish Top FPS Pistons





Alternative Views:


Available Part Numbers/Oversize

P2404F-030 - 4.390
P2404F-060 - 4.420

FACTORY PERFORMANCE SERIES - FPS

Probe FPS Forged Pistons are designed for heavy duty (towing, etc.) or high performance street car, trucks, marine and some racing applications. FPS pistons are far stronger than hypereutectic cast pistons. May be used with boost and nitrous oxide.

  • 4032 Forged Aluminum
  • Increased valve clearance
  • Tight piston to wall clearance
  • Reduced piston weight
  • Reinforced piston skirts
  • Offset wrist pins (Eliminates collapsed piston skirts)
  • Press-fit or floating wrist pins

PROBE Industries Forged Pistons - The Fastest, Most Powerful Pistons For the Money! Since 1987 Probe Industries has manufactured a wide variety of products ranging from lightweight billet rockers to forged pistons. Probe Industries is continually striving for excellence in offering a large selection of products to racers and automotive enthusiasts. Today, Probe forged pistons are a result of many years of technological advances in both forging and machine tool technology.



Item# Item Name CHP Price Qty Add
P2404F-030 FPS Pistons - Ford 460 Dish Top -24.4cc (+.030)
$0.00
P2404F-060 FPS Pistons - Ford 460 Dish Top -24.4cc (+.060)
$0.00
Check the items you wish to purchase, then click


Technical Specs:
Item CodeP2404F
Vendor
Probe Industries
Product TypePistons
Product ModelFactory Performance Series - FPS
Engine Displacement
460
Engine FamilyFORD - Big Block V8
Material4032 Forged Aluminum
Base Bore
4.360
Stroke
3.850
Rod Length
6.605
Compression Height
1.756
Top TypeDish Top
Net Head Volume
-24.4
Dish Depth
.070
Deck Thickness
.280
Weight Without Pin
663
Wrist Pin Diameter
1.040
Wrist Pin Length
3.300
Wrist Pin Weight
172
Wrist Pin PlacementCentered
Pin Lock TypePress Fit
Ring Set
40843CP
Top Ring Groove
5/64
Second Ring Groove
5/64
Oil Ring Groove
3/16
Top Ring Land
.400
Second Ring Land
.190
Bottom Ring Land
.100
QuantitySold in sets of 8




Compression Ratio:

Part Number
Cylinder Head Volume
74.0cc86.0cc100.0cc
P2404F-0309.618.777.98
P2404F-0609.728.878.07
