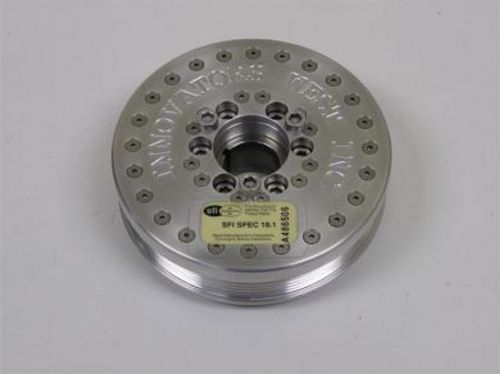

Innovators West Damper - SFI
Innovators West Damper - SFI

Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.





Call For Price and Availability!

Videos


The Innovators West dampers are a friction style damper. Inside the damper is a wet friction clutch pack assembly. Spring Loaded intertia rings work in conjuction with clutches to provide the dampening action. There is a small amount of fluid inside that acts as a lubricant as well as dissapates heat. The free floating clutch pack design allows for a broad dampening range in a small package.

All Innovators West dampers exceed the SFI 18.1 standards. A SFI sticker is placed on the damper as well as the SFI number is stamped into the back of the damper case.

Most dampers are marked every 5 degrees for 360 degrees and marked every 2 degrees from 30 degrees to 50 degrees. Serpentine dampers such as the Ford Mod Motor and GM LS dampers are not generally marked as the timing is computer controlled.

Notes:

8-rib Drive 6% Overdrive. The "Mod Motor" dampner are designed to fit 4.6L 2V, 3V and 4V motors as well as 5.4L 2V motors.
