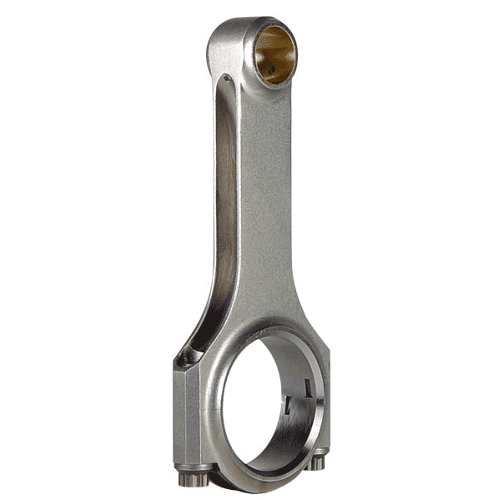

These H-Beam Steel Rods are precision forged of select 4340 aircraft quality steel,vacuum degassed to remove impurities. They are forged in two pieces to insure proper grain flow, then all surfaces are CNC machined into a track proven H-Beam design and shot-peened to relieve stress. Silicon Bronze bushings are then installed for increased wear resistance and precision ground alignment sleeves are added to the rod cap to prevent cap walk under high horsepower loads.

Features:

   Forged of Quality 4340 Steel
   High Strength H-Beam Design
   Shot Peened
   Bronze Bushed
   7/16 ARP 12pt Cap Screws
   Weight Balanced + 2 Grams
   63 lbs. w/Moly Lube

Item Code	1204-10074
Vendor	CHP
Product Type	Connecting Rod
Engine Family	FORD - 302 Based V8
Material	4340 Forged Steel
Connecting Rod Style	H-Beam
Connecting Rod Length	5.315
Big End Bore Diameter	2.239
Pin End Bore Diameter	.912
Big End Width	.833
Wrist Pin	Floating
Cap Retention	Cap Screw
Rod Bolt	ARP
Approximate Rod Weight	610
Weight Matched Set	Yes
Balanced	Yes
Quantity	Sold as a set of 8
