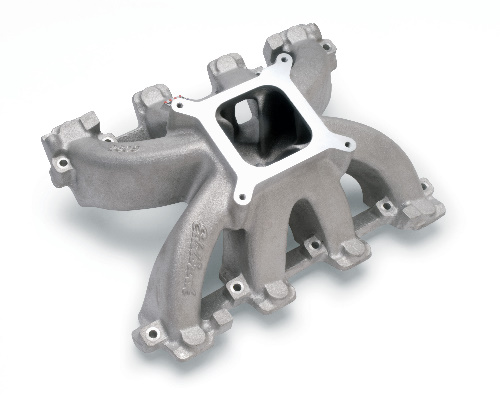

Edelbrock Super Victor LS1 Intake Manifold

Home > Intake Manifolds > Carbureted Intake Manifolds > Edelbrock Carb I/M > Chev LS >

Edelbrock Super Victor LS1 Intake Manifold - Chevy LS-Series, Satin

Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.

Call For Price and Availability!

Videos

Technical Specs

Building on the success of the Victor Jr. LS1 manifold, the Super Victor LS1 offers greater air flow potential for ever bigger power gains from these modern engines. The carb mount pad is 1.12" taller than the Victor Jr. LS1, and the port exits have been increased to 1.08" x 2.74". Use Edelbrock Timing Control Module #91238 to drive the stock coil-on-plug ignition system. This manifold has already been accepted by NASCAR for use in the Grand National division/Busch North spec engine series. Super Victor EFI LS1 manifold #28095 is for high-output competition EFI systems and features precisely positioned and machined injector bosses for excellent fuel spray patterns and maximum power. Universal 4-Barrel Throttle Bodies, fuel rails, fuel injectors, fuel pumps and regulators are available separately to complete your competition EFI system.

For more videos, check out our Coast High Performance/Custom Performance Engines YouTube pages. Click below
