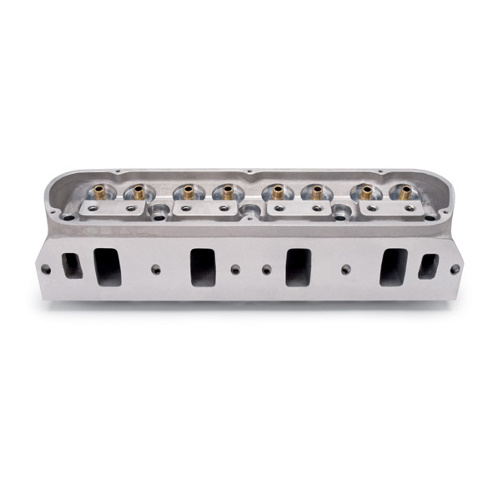

These cylinder heads are designed for maximum effort competition racing on 289 _ 351+ cubic inch based engines. The inline valve configuration features a 15Á valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"; however the intake flange has been extended to maintain proper port alignment with standard intake manifolds. The exhaust ports are patterned with a 2.50" spacing and raised .520" for high flow potential. These heads do require shaft mounted rockers; please contact Jessel and T&D for details. Two applications are available, semi-finished and fully CNC ported. The #77219 includes 47cc combustion chambers, ductile iron interlocking valve seats, bronze valve guides and requires professional preparation. The #612969 is a fully CNC ported version that features HIP processed casting for high density. The 60cc combustion chambers, 276cc intake ports and 95cc exhaust ports are fully CNC ported for maximum flow out of the box. Additional qualities include a 5/8" thick deck, 11/32" bore valve guides, and 1.935" valve centerlines. Edelbrock recommends 2.100" intake valves and 1.650" exhaust valves with 5.45" overall length.

Item Code	EDE-77219
Vendor Name	Edelbrock
Product Type	Cylinder Head
Product Model	Victor
Application	Ultra high-performance and large displacement small-block Fords (high rpm 302s to 351 and larger Windsors)
Engine Family	FORD-LINCOLN-MERCURY - Small Block 302 Based V8, Small Block 351 Windsor Based V8
Material	Aluminum
Finish	Natural
Cylinder Head Style	Bare
Combustion Chamber Volume (cc)	47cc
Intake Runner Volume (cc)	240cc
Exhaust Runner Volume (cc)	80cc
CNC Machined Combustion Chamber	No
CNC Machined Intake Runner	No
CNC Machined Exhaust Runner	No
Combustion Chamber Style	Standard
Intake Port Shape	Rectangular
Intake Port Location	Raised 0.375"
Exhaust Port Shape	Square
Exhaust Port Location	Standard
Valves Included	No
Intake Valve Diameter (in)	2.125"
Exhaust Valve Diameter (in)	1.625"
Intake Valve Angle	15 degree
Exhaust Valve Angle	15 degree
Valve Springs Included	No
Outside Diameter of Outer Spring (in)	1.630"
Damper Spring Included	No
Retainers Included	No
Valve Locks Included	No
Valve Stem Seals Included	No
Rocker Arm Studs Included	No
Rocker Arm Nuts Included	No
Rocker Arms Included	No
Guideplates Included	No
Accessory Holes Drilled	Yes
Valve Guides Included	Yes
Quantity	Sold individually.
