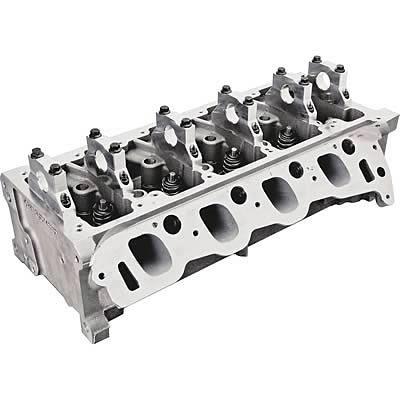

Brand: Trick Flow Specialties
Manufacturer's Part Number:
TFS-51910004-M44
Cylinder Head Style:
Assembled
Cylinder Head Finish:
Natural
Combustion Chamber Volume (cc):
44
CNC-Machined Combustion Chamber:
Yes
Intake Runner Volume (cc):
185cc
Exhaust Runner Volume (cc):
93cc
CNC-Machined Intake Runner:
No
CNC-Machined Exhaust Runner:
No
Combustion Chamber Style:
Twisted Wedge®
Intake Port Location:
Standard
Exhaust Port Shape:
D-port
Exhaust Port Location:
Standard
Spark Plug Style:
Angle
Intake Valves Included:
Yes
Intake Valve Diameter (in):
1.840 in.
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in):
1.450 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in):
0.580 in.
Outside Diameter of Outer Spring (in):
1.000 in./1.060 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Retainers Included:
Yes
Retainer Material:
Chromoly steel
Locks Included:
Yes
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Valve Stem Seal Style:
Positive stop
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Cover Mounting Style:
Perimeter bolt
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
9
Exhaust Valve Angle:
9
Valve Guides Included:
Yes
Valve Guide Material:
Powdered metal
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Steam Holes Drilled:
No
Oiling Style:
Through head
Machined for O-Ring:
No
Heat Crossover:
No
Quantity:
Sold individually.
Notes:
Accepts all Romeo and Windsor valve covers, plus most
stock-style Ford front covers. Includes beehive springs, 125 lbs. at
1.600 in. installed height.
