Edelbrock C-26 Dual Quad Intake Manifold - Chevy Small Block, Satin

Home > Intake Manifolds > Carbureted Intake Manifolds > Edelbrock Carb I/M > Chev SB >

Image may be a representation of product. While we try to get as close as possible to the exact part, it is not always possible.

Call For Price and Availability!

Videos

Technical Specs

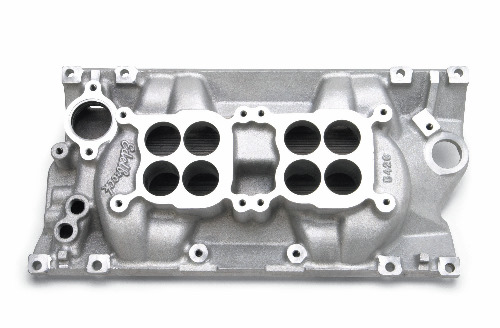

Designed for 1955-86 262-400 c.i.d. S/B Chevys, this dual-quad is low profile for hood clearance on most vehicles. Air-conditioning bosses and front oil filler tube boss included. Stock alternator brackets do not fit. C-26 Dual-Quad manifold #5426 is designed for Chevy V8s with 1996 and later Vortec (L31) cast iron or the Edelbrock E-Tec aluminum heads. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Carb center to carb center: 6-7/16". Use with Performer-Plus cam #2103 for low-end torque or Torker-Plus cam/kit #5002 for top-end power. Accepts Oil Fill Tube and Breather #4803.

For more videos, check out our Coast High Performance/Custom Performance Engines YouTube pages. Click below
